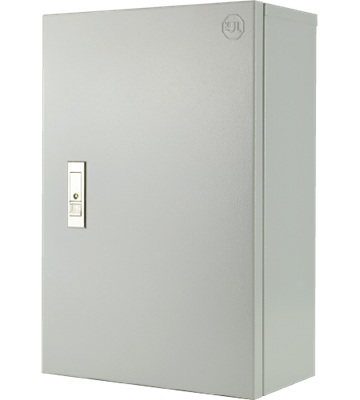

AC-DC combiner box 1string DC 800V, 16A RCBO 2P InA=100mA 25A, 1phase
1.0 ตู้ไซด์กันน้ำไม่มีหลังคา SIZE#1 300x450x170mm. KBSN 9001 (KJL)
1.1 DC Combiner Box 1String: DC 800V Suntree
- DC 16A 2P MCB 800V SL7-63C16 POLARITY DC Breaker (Suntree)
- SUP2H-PV DC SPD 800V 2P 20-40KA (Suntree)
- DC FUSE HOLDER (Suntree)
- DC FUSE Link 1000V/16A (Suntree)
1.2 AC Section:
-AC RCBO -2P 25A (CNC)
-AC SPD (Uc275V/ In 20Ka/ Imax 40Ka) (Suntree)
1.3 Wiring ACC:
- THW. 6 Sq.mm. (Brown) / CV-FD 6 Sq.mm. (Black (L1 Marker) ) (BCC/YAZAKI)
- THW. 6 Sq.mm. (Blue) / CV-FD 6 Sq.mm. (Black (N Marker) ) (BCC/YAZAKI)
- THW. 6 Sq.mm. Ground. Ac cable (BCC/YAZAKI)
- PV Cable PV1-F 4 Sq.mm. red Dc cable (LINK)
- PV Cable PV1-F 4 Sq.mm. black Dc cable (LINK)
- WIRE DUCT 40x40mm
- Wiring accessories
- AC Terminal 45A
- DC Therminal HV 56A, 800V
- Grounding Bus-Bar 8 Slots, hole Size 6 Mm
