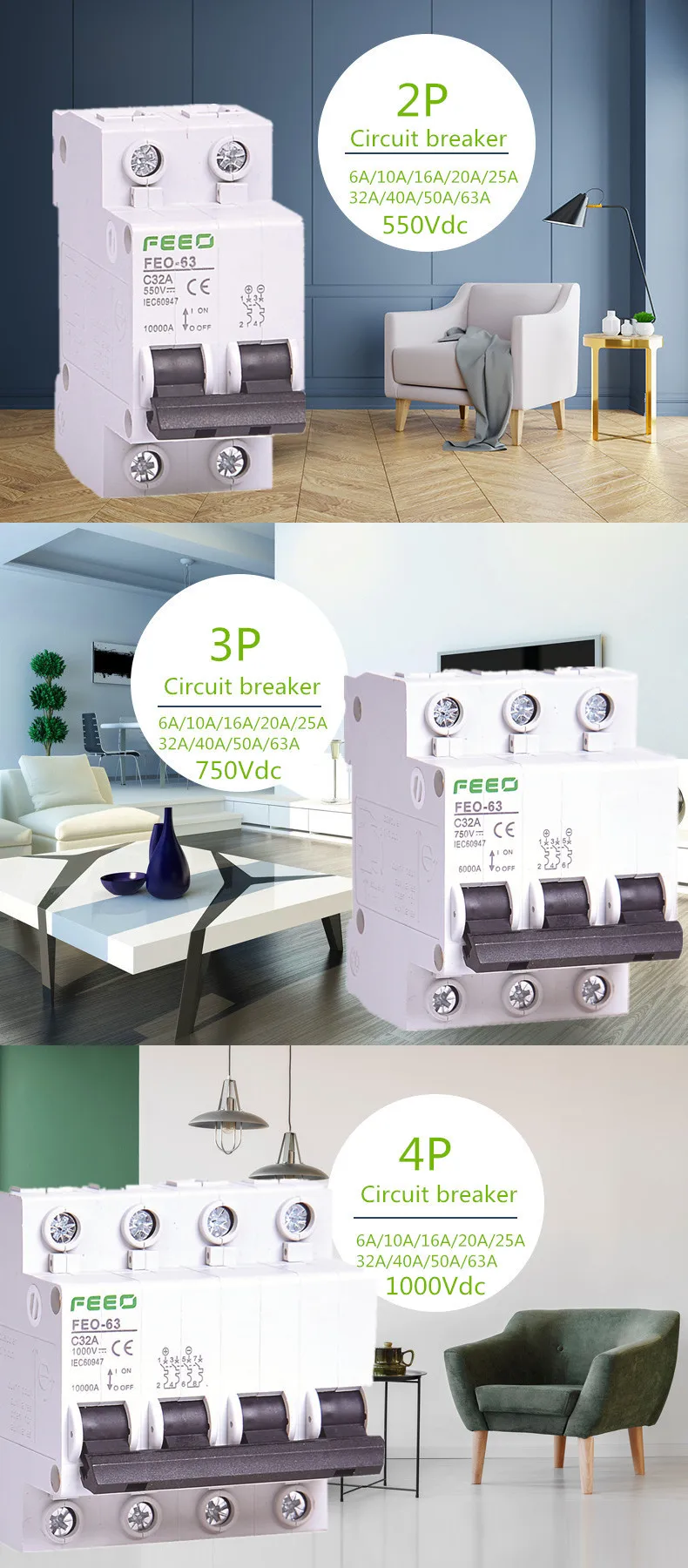

FEO-63 2P 550V Circuit Breaker With CE Certificate
|
FEO-63 Series Circuit Breaker |
FEO-63 |
|
|
Frame Degree Rated Current (A) |
63 |
|
|
Pole |
2P |
|
|
Rated Operating Voltage (V DC) |
DC12V -DC1000V |
|
|
Rated Current In (A) |
1-63A |
|
|
Rated Insulation Voltage Ui (V DC) |
1200VDC |
|
|
Rated Impact Voltage Uimp (kV) |
4 |
|
|
Ultimate Breaking Capacity lcu (kA) |
6 |
|
|
Run Breaking Capacity lcs (%lcu) |
75% |
|
|
Curve Type |
C |
|
|
Trip Type |
Thermal-magnetic |
|
|
Mechanical |
Actual average value |
9700 |
|
Standard value |
9700 |
|
|
Electric |
Actual average value |
300 |
|
Standard value |
200 |
|
|
Wiring capacity (mm2)
|
In≤ 32A, 1~25 mm2, I≥40A, 10~35mm2 |
||||
|
Ambient temperature (℃ ) |
-20~+40 |
||||
|
Altitude |
≤2000 |
||||
|
Relative humidity |
≤9 5% |
||||
|
Pollution Level |
3 |
||||
|
Installation Environment |
No obvious shock and vibration |
||||
|
Installation category |
Class III |
||||
|
Installation |
DIN Standard rail |
||||
|
Dimensions(W)x(H)x(Deep) |
W |
18 |
36 |
54 |
72 |
|
H |
78 |
78 |
78 |
78 |
|
|
Deep |
71 |
71 |
71 |
71 |
|
